HKS Turbo Intercooler Kit + Piping Inlet & Outlet (13001-AH007)

𝐖𝐡𝐚𝐭’𝐬 𝐈𝐧𝐜𝐥𝐮𝐝𝐞𝐝 : : 1 x INTERCOOLER KIT + Piping

■ 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬:

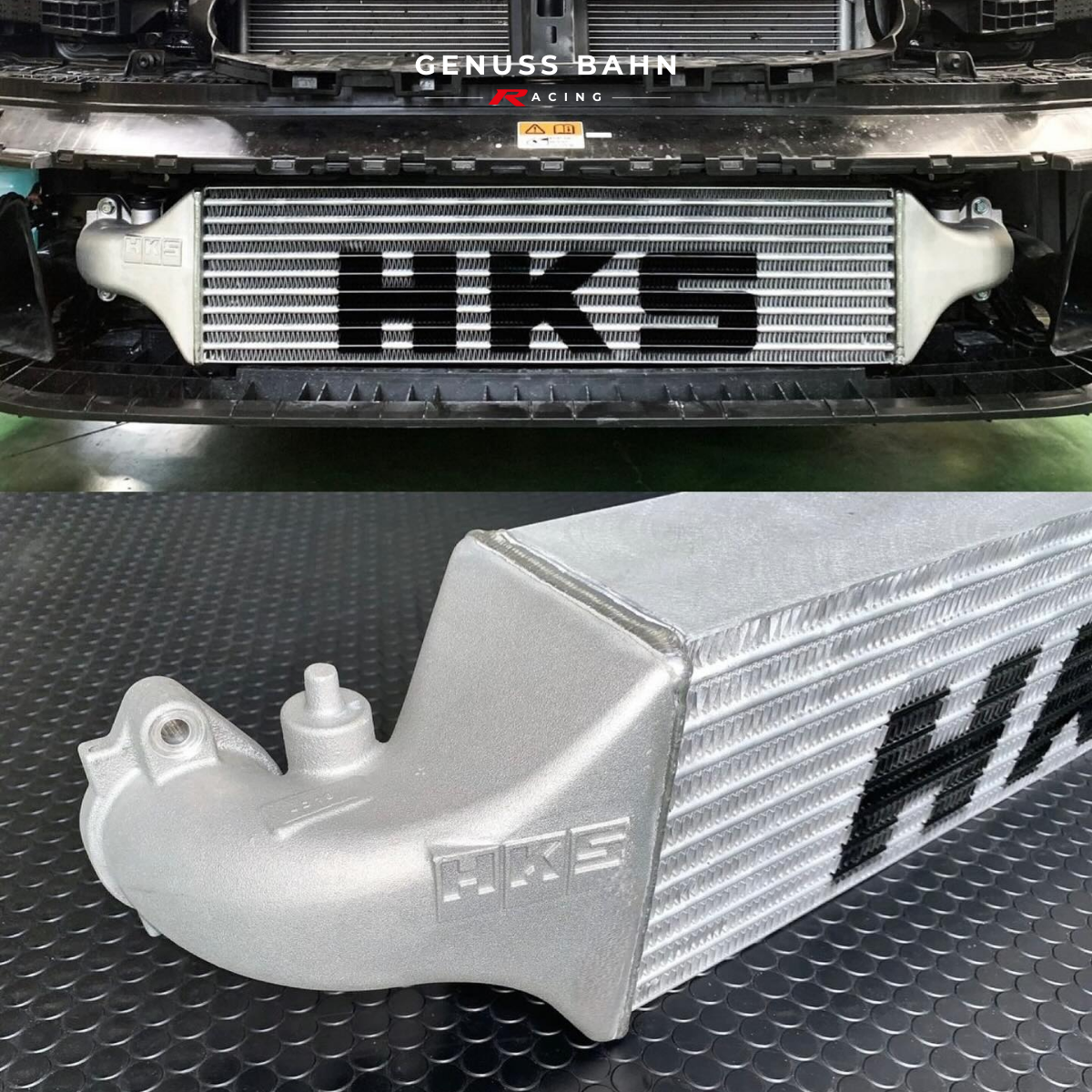

Intercooler: The core area has been increased by 22.4% compared to the original, expanding the area exposed to the wind while driving and improving cooling performance. By increasing the core capacity, it can handle everything from boost up to turbo replacement. This layout allows installation even with genuine piping.

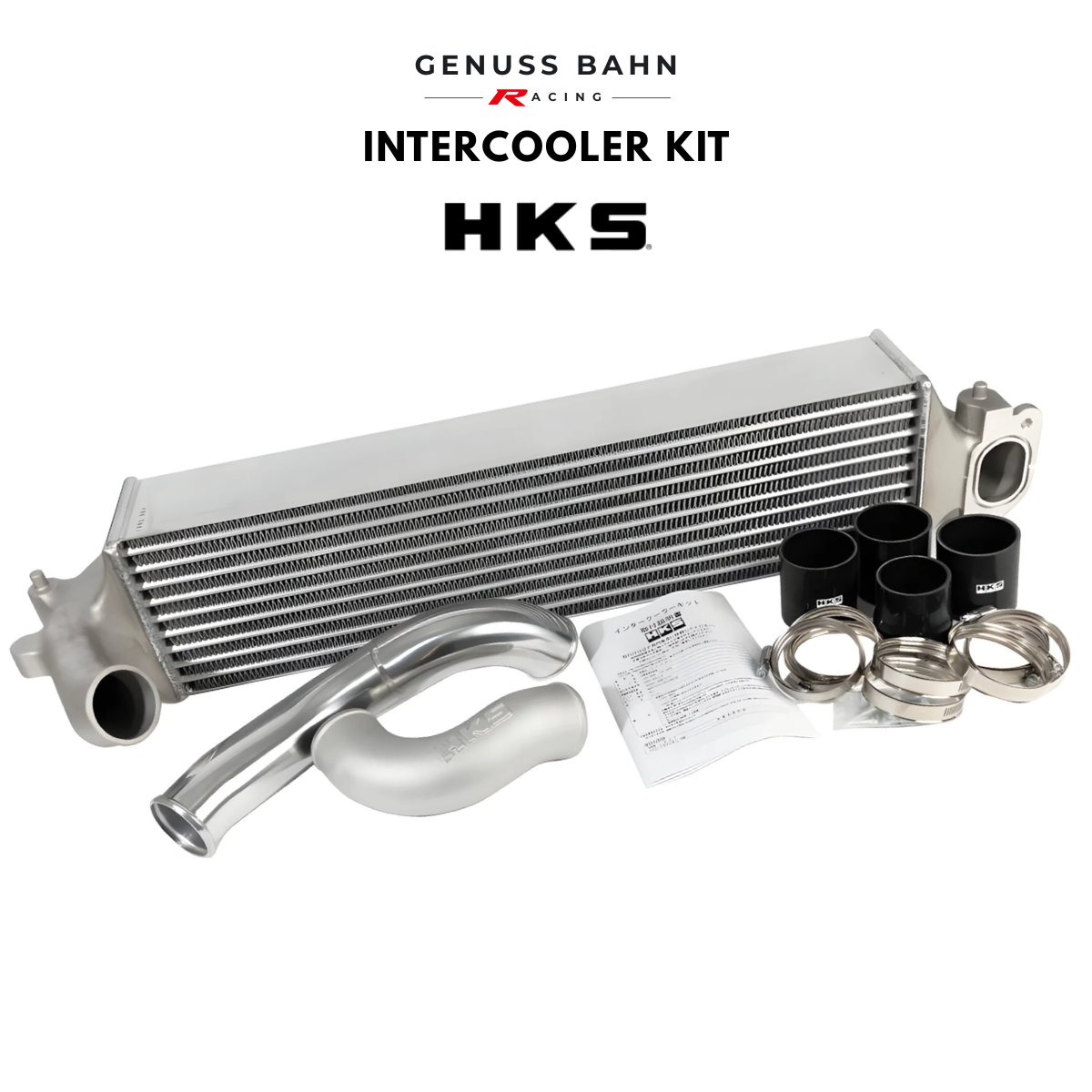

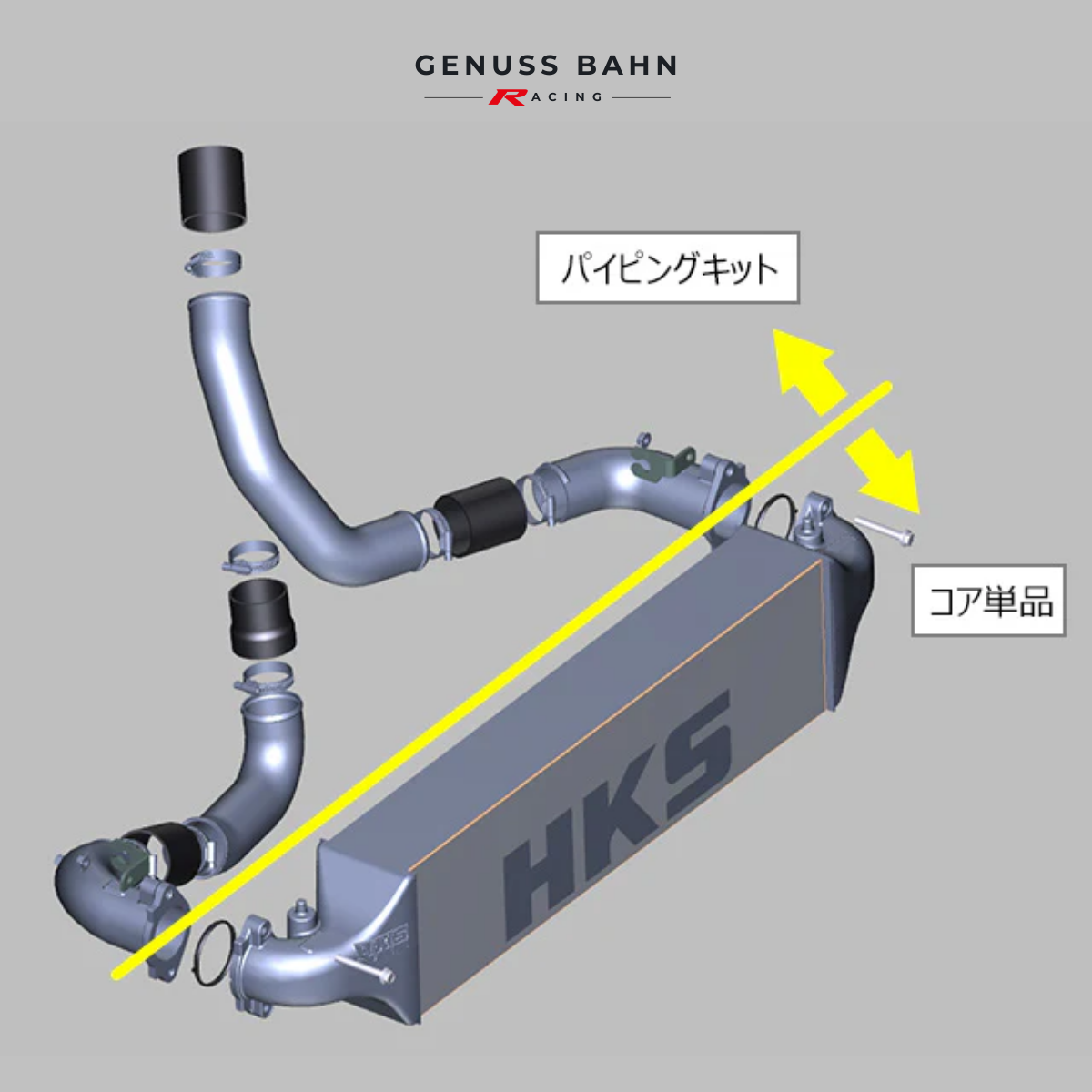

■ 𝐊𝐢𝐭 𝐂𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧

[Core only]: Intercooler Core; Masking sheet for logo spray

[Piping kit]: Aluminum bent pipe (IN/OUT); Cast pipe (IN/OUT); Silicone Hose; Bracket (IN/OUT); Hose clamp; Dedicated bolts and nuts

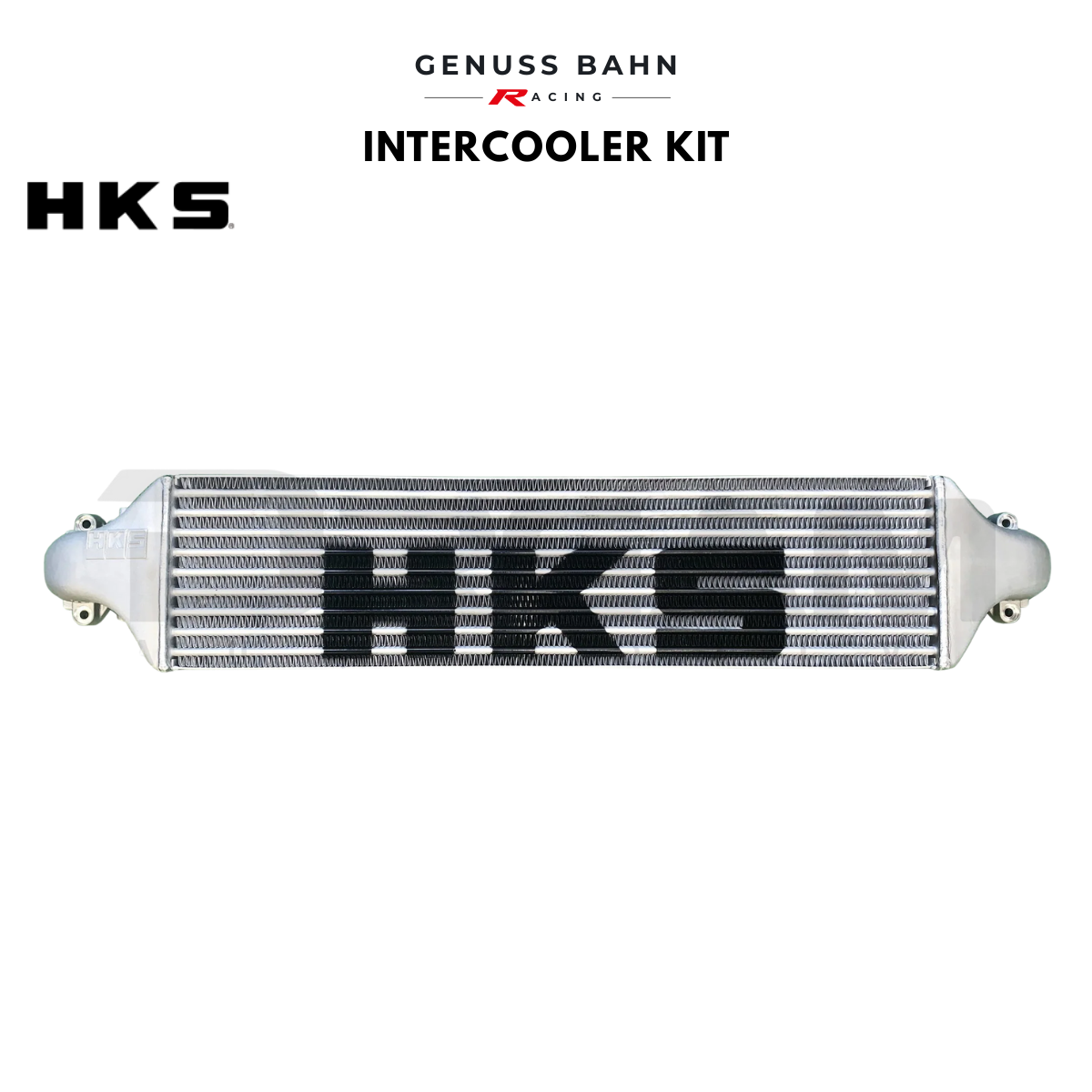

CORE SPECIFICATION: Core size: 695 x 178 x 100; Core specifications: 10 fins, 9 tubes; Tank: Aluminum casting

PERFORMANCE: Output: 245kW (333PS/6500rpm); Torque: 449.5Nm (45.9kgm)/3260rpm

Cooling performance: I/C outlet 30.3°C (7000rpm); Cooling efficiency: 88% (7000rpm)

Core only.

𝐍𝐎𝐓𝐄𝐒:

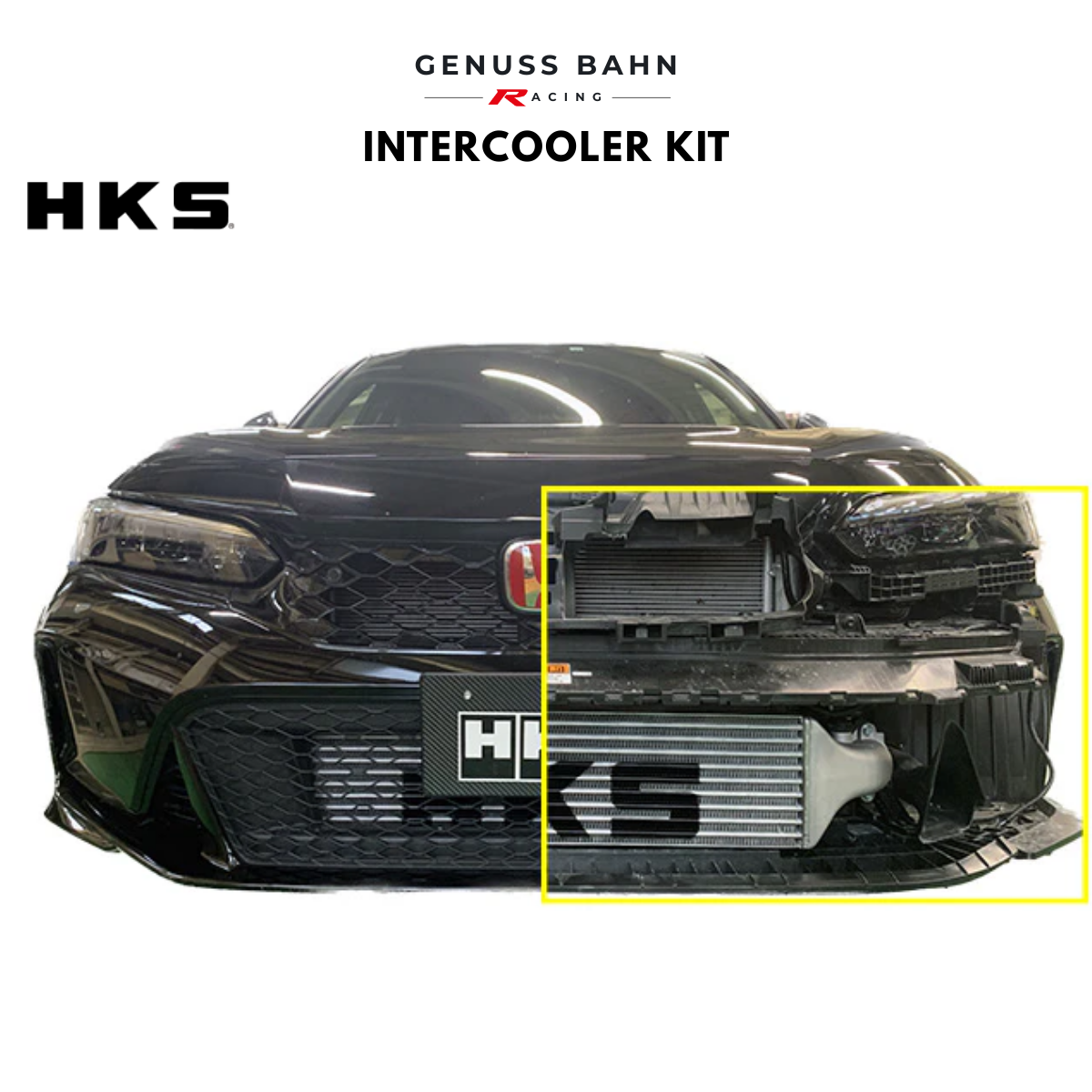

*1. To install the intercooler assembly, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. There is no modification to the reinforcement.

*2. To install the piping, it is necessary to cut the bracket on the vehicle body.

*3. For the FULL KIT, the measures (*1) and (*2) are required.
