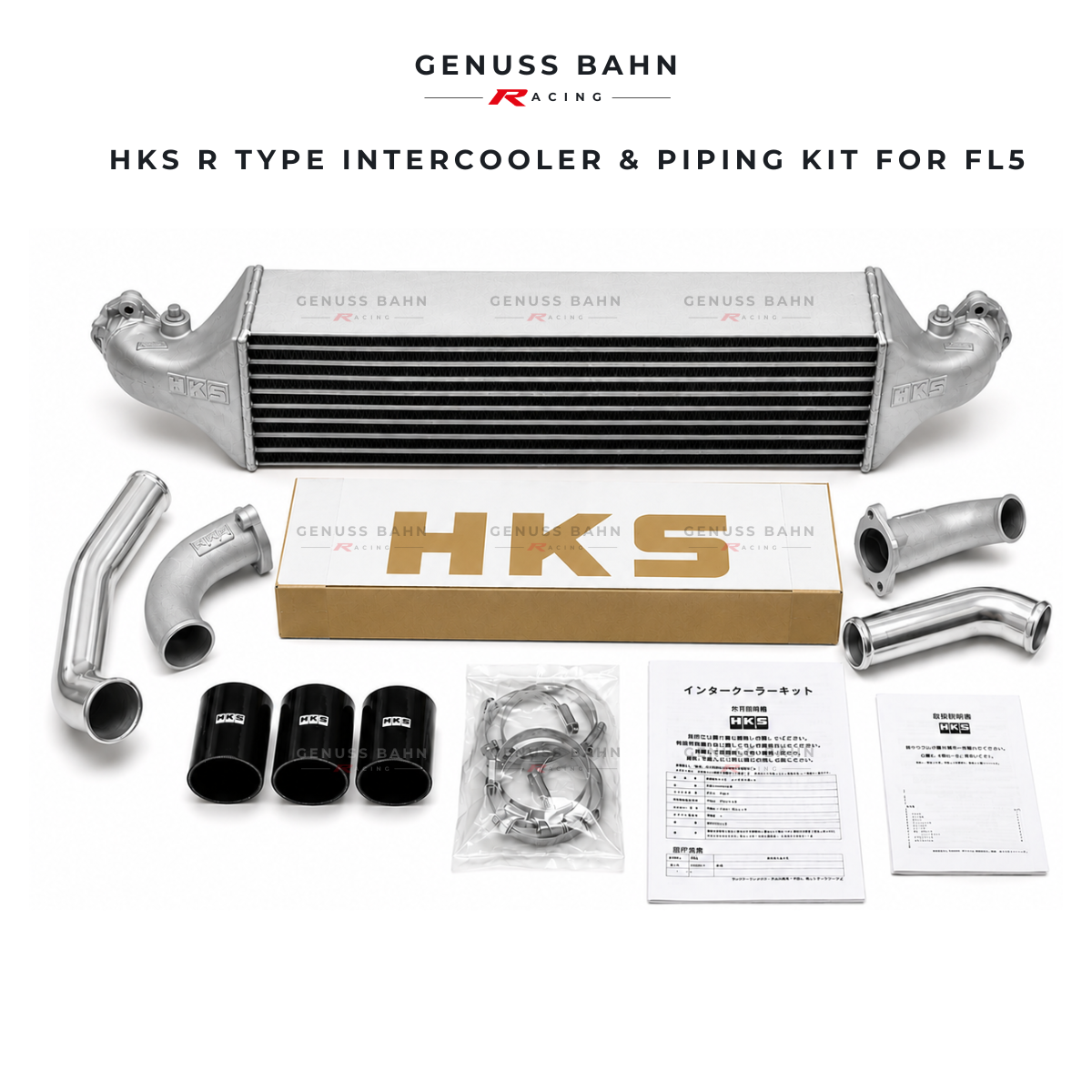

HKS R TYPE Intercooler & Piping Kit For Honda Civic Type-R FL5 (2023+)

Features

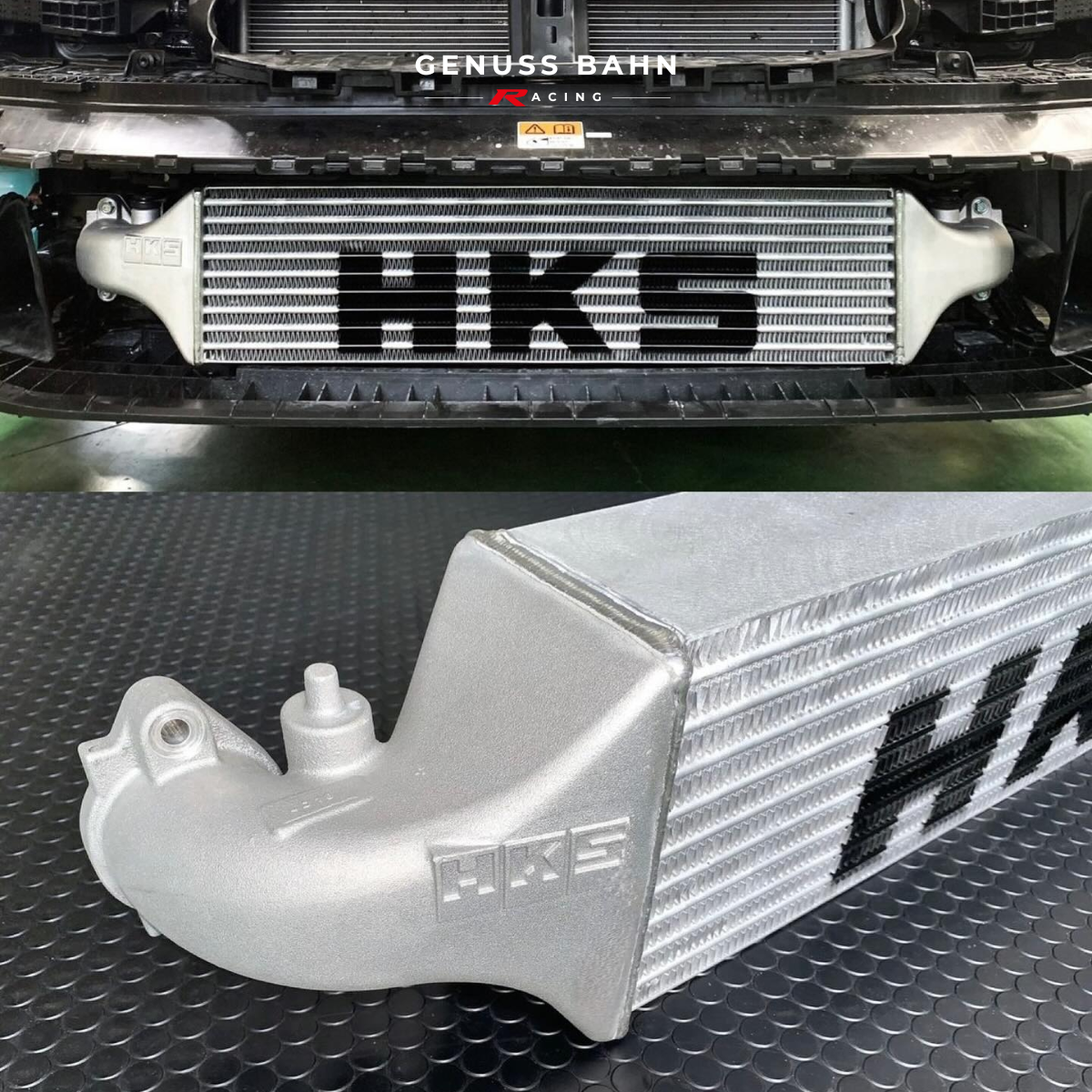

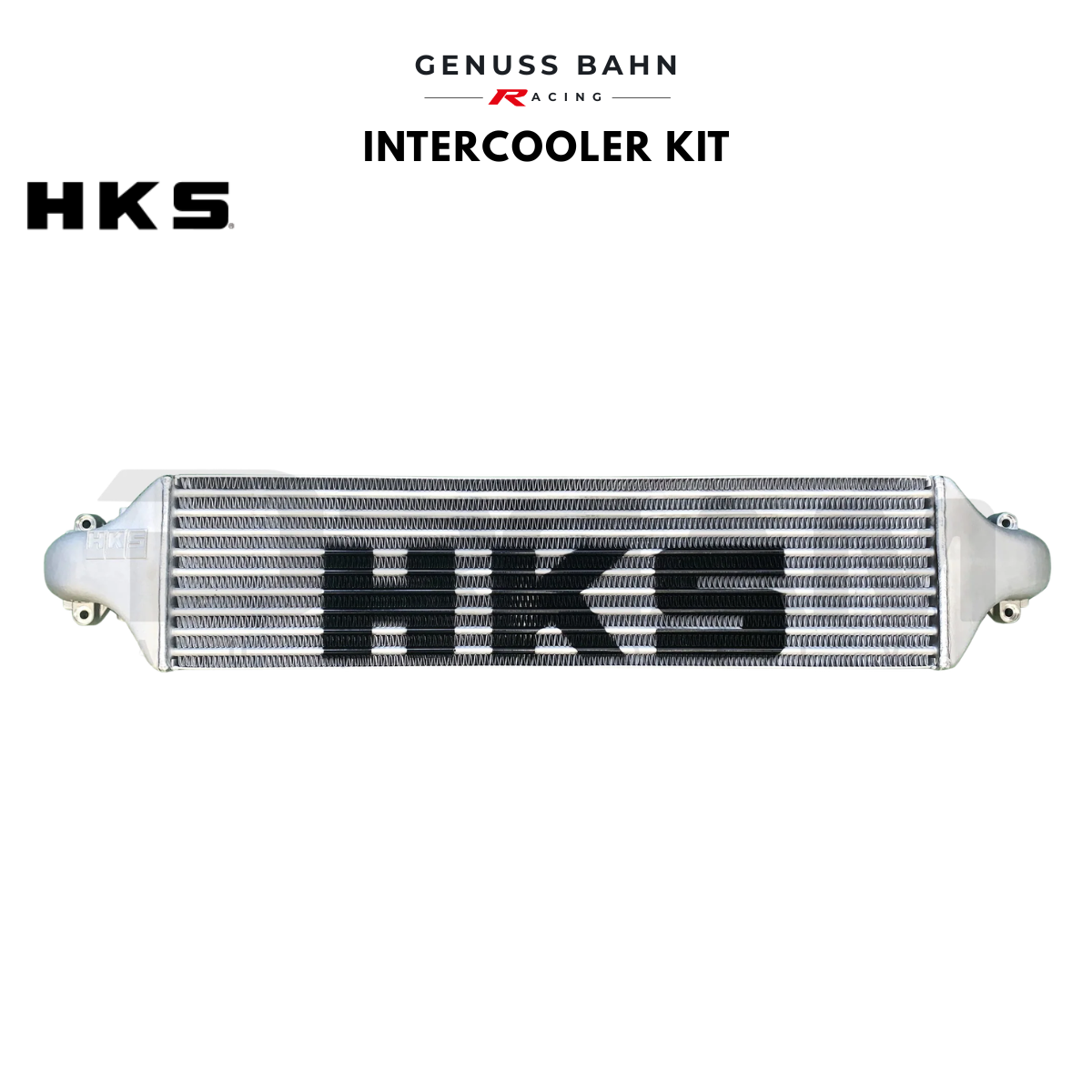

Intercooler Core

• A huge 22.4% increase in core’s area leads to immense improvement in cooling.

• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.

• The core is designed to be also installed with OEM piping

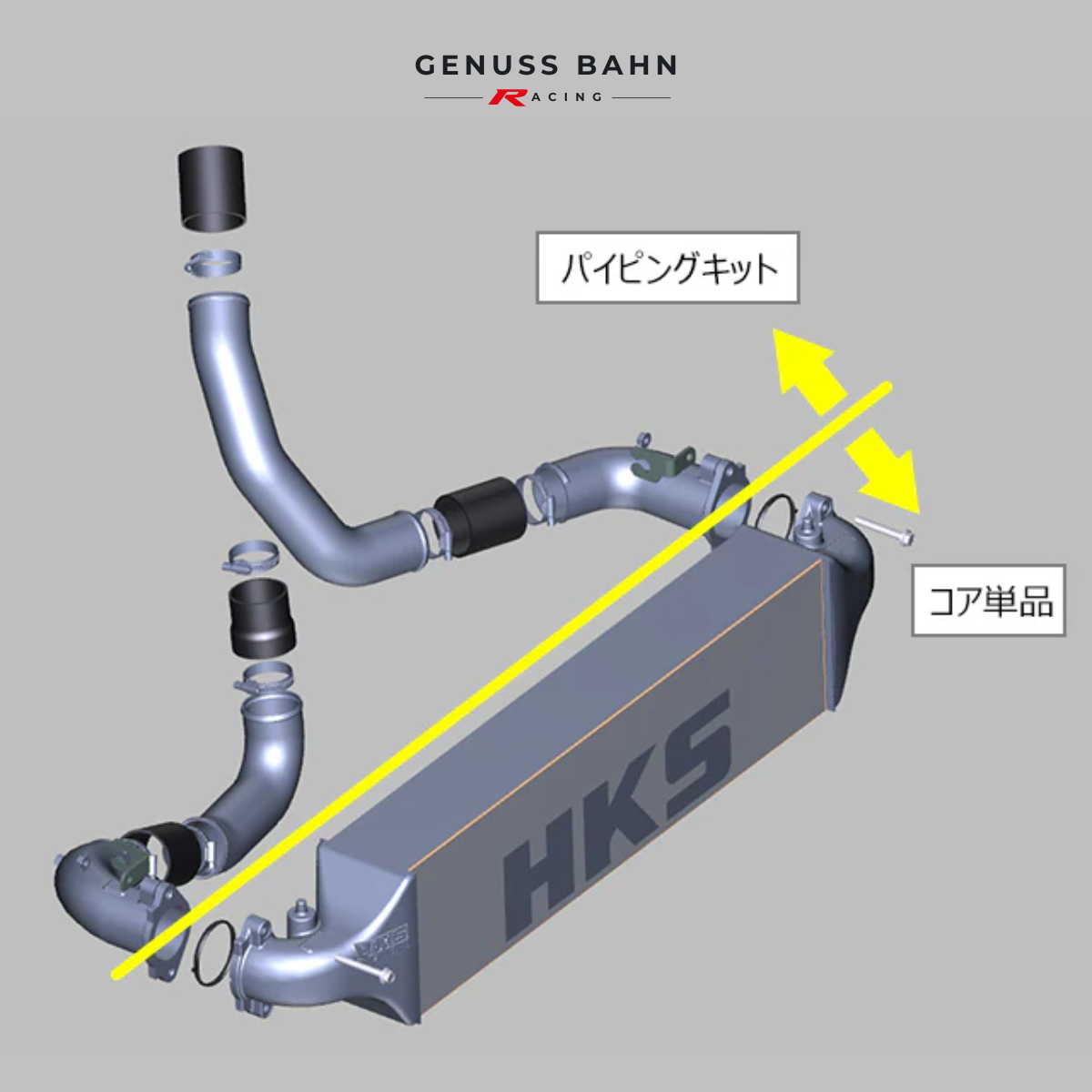

Piping Kit

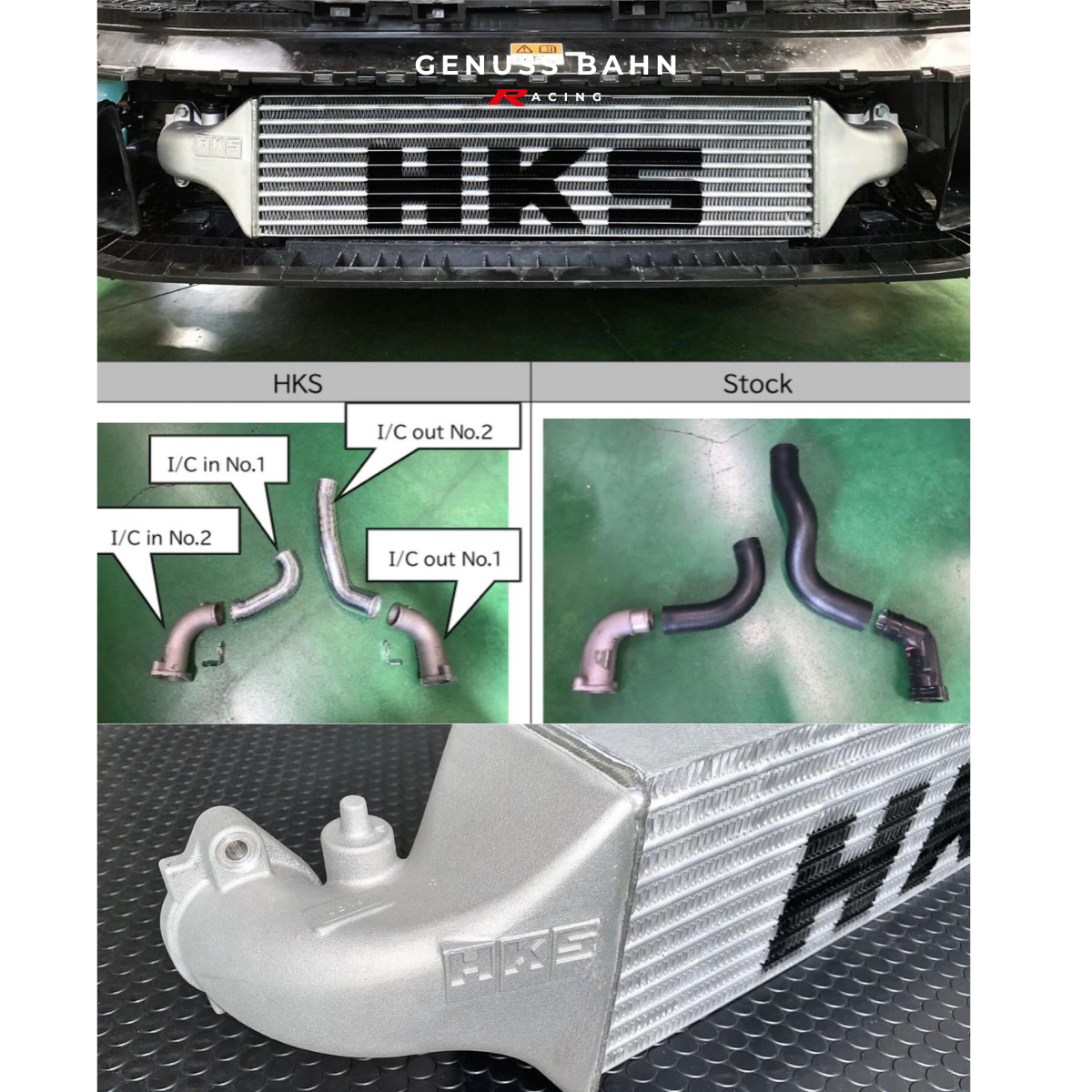

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.

• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.

• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.


Important Notes:

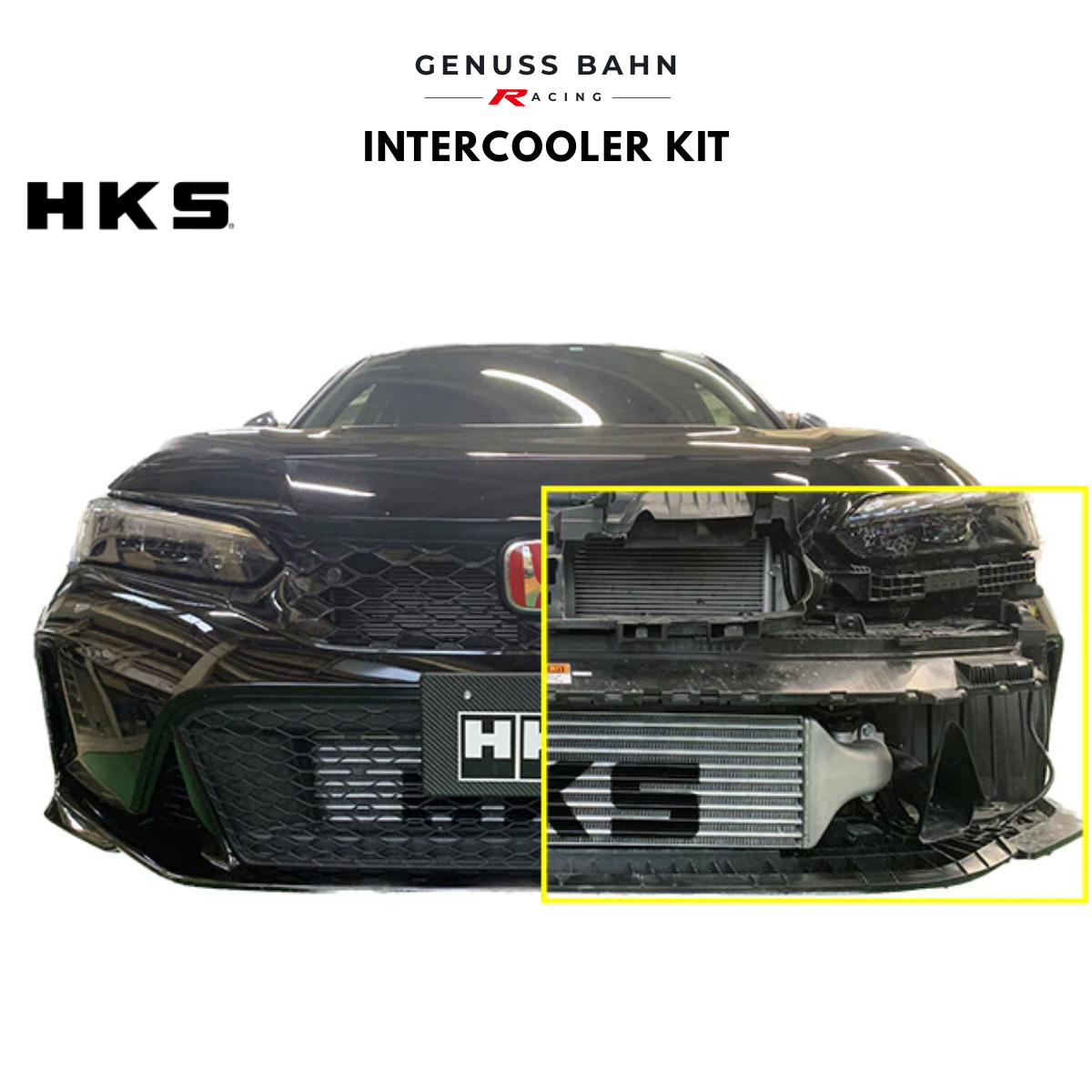

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.
